- Cost effective drive solution with wide range of programming capabilities
- 230V 3-Phase Input, 230V 3-Phase Output
- 1 HP Constant Torque (4.3 Amps)
- V/F mode or Sensorless Vector Operation
- Simple to program with parameters grouped by function type and purpose

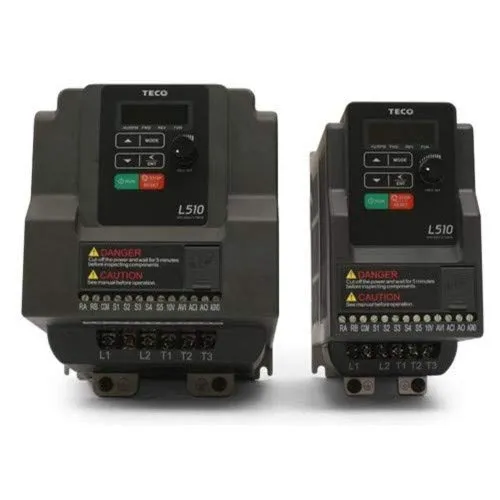

FACTORY NEW TECO VARIABLE FREQUENCY DRIVE
*USE THIS DEVICE TO START/STOP & CONTROL THE SPEED OF A THREE PHASE MOTOR*
1 HP INPUT VOLTS: 230V 3PH OUTPUT VOLTS: 230V 3PH OUTPUT AMPS: 4.3 ENCLOSURE: IP 20
TECO CAT#: L510-201-H3-N (Replacement for the EV (JNEV-201-H3) Micro Series)
Dimensions: Height: 5.55" Width: 2.83" Depth: 5.48" Weight: 4 LBS.
Applications: - Lathes - Mixers - Fans - Pumps - Small Conveyors - Treadmills - Packaging - HVAC - Food and Beverage - Machine/Tooling - Converting fixed speed motors to variable speed
Features: - Compact Design: the L510 has a small footprint and accommodates DIN rail mounting as an option - Simple to program with parameters grouped by function type and purpose - 150% overload - 0-650 Hz - Speed pot standard for all ratings - V/F control, auto-torque boost or sensorless vector - Leakage current prevention via capacitor switch - Digital Operator: 5 digit bright LED readout - Diagnostics and parameter configurations - Power loss ride-through - TECO-Link configuration software for on-line monitoring, programming, and operation via built-in RS485 - UL, cUL Listed, and CE Marked
FACTORY NEW in FACTORY CARTON with Manufactures Warranty
800-469-3110 VISIT US AT DEALERSELECTRIC.COM YOUR NUMBER 1 SOURCE FOR AC DRIVES AND ELECTRIC MOTORS FROM 1/8 TO 1000 HP
- Is Discontinued By Manufacturer : No
- Product Dimensions : 5.48 x 2.83 x 5.55 inches; 2 Pounds
- Date First Available : July 28, 2016
- Manufacturer : Teco Westinghouse
